Softrock Lite II Softrock Lite II: Power Supply
Band: 20m
Introduction
General Info About the Stage
In this first (and following) stages, the builder should remember that one of the most common causes of errors is soldering. It pays to review materials on soldering, get help from Elmers, or whatever you can do to make your solder joints as clean and properly conductive as possible!
The second most common cause of errors is installation of the WRONG component and/or installing the component in the wrong ORIENTATION. The old rule of "measure twice, cut once" clearly applies to this project. Be especially careful and beware that it is very easy to install the wrong resistor depending entirely in color codes. While color codes are helpful in initially sorting resistors out, it is imperative that you validate that you have the correct resistor by double checking with your ohmmeter. While the ohmmeter reading will never be the exact value, for most of the resistors in this kit, the ohmmeter will get you to within 1% (a very few some are within 5%) of the stated value
The remaining one-tenth of one percent of the causes of errors is the defective component - most suspect the component immediately; the intelligent rarely look first at possible component failure.
Theory of Operation
This stage provides the +5 volt power rail for the radio. The incoming voltage (from 9 - 12 Vdc) is regulated by U1 to a nominal 5 Vdc (4.5 - 5.1 Vdc range). D1 serves to protect the circuit from accidentally reversed polarity.
Go to Top of Page

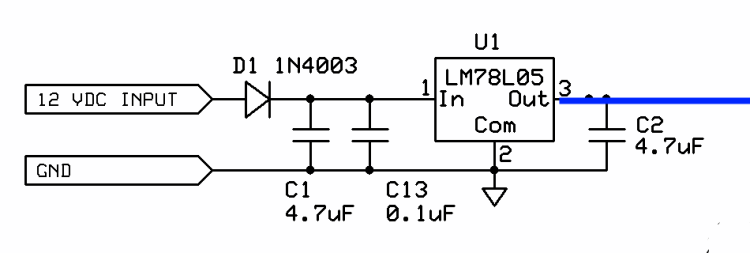

Stage Schematic
Go to Top of Page
Click here for full schematic
Board Layouts

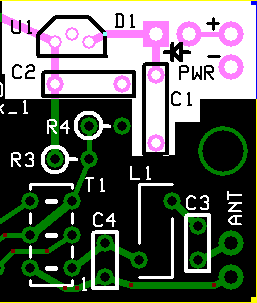

Board Top
Go to Top of Page
Board Bottom
Go to Top of Page
Power Supply Bill of Materials
( 20m band option)
(details for installation of each component are provided in the step instructions, further down the page)
| Check | Type | Category | Component | Count | Marking | Image |
|---|---|---|---|---|---|---|
| ☐ | Capacitor | SMT 1206 | 0.1 uF | 1 | (smt) black stripe |
|
| ☐ | Capacitor | Ceramic | 4.7 uF 10% 16V X7R RAD | 2 | 475 |
|
| ☐ | Diode | Axial | 1N4003 | 1 | 1N4003 Rectifier Diode |
|
| ☐ | IC | TO-92 | LM78L05 voltage regulator | 1 | LM78L05 ESD!!! |
|
| ☐ | PCB | Main Board | SR Lite II (Combined) PCB | 1 | ||
| ☐ | wire | Cutoff | shunt wire (cut-off lead) | 1 |
Go to Top of Page
Detailed Build Steps
Install SMT cap
Install C13 SMT 0.1 uF cap
Take care to avoid solder "splashover" that could clog up the thru-holes above and to the right of C13 (see red dots in above graphic)
See hints on installing SMT Caps.| Check | Designation | Component (top/bottom) | Orientation | Marking | Image | Band | Notes |
|---|---|---|---|---|---|---|---|
| ☐ | PCB | SR Lite II (Combined) PCB (top) | any | ||||
| ☐ | C13 | 0.1 uF ((bottom)) | white pads | (smt) black stripe |
|
any |
Install topside components
Install C1 and C2 (the two blue capacitors), U1, and D1. Install D1 such that the cathode end (the end with the band) is facing up and forms a hairpin. The hairpin lead will go into the square thru-hole (refer to the Completed Stage, Topside picture below).
See hints on identifying and installing Ceramic Capacitors
Take care to correctly identify the Voltage regulator, U1. It is a TO92 package, as are the 2N390x transistors. Some have had the misfortune of installing one of the 2N390x transistors in this stage, with strange results.
| Check | Designation | Component (top/bottom) | Orientation | Marking | Image | Band | Notes |
|---|---|---|---|---|---|---|---|
| ☐ | U1 | LM78L05 voltage regulator (top) | LM78L05 ESD!!! |
|
any | ||
| ☐ | D1 | 1N4003 (top) | E-W | 1N4003 Rectifier Diode |
|
any | |
| ☐ | C01 | 4.7 uF 10% 16V X7R RAD (top) | 475 |
|
any | ||
| ☐ | C02 | 4.7 uF 10% 16V X7R RAD (top) | 475 |
|
any |

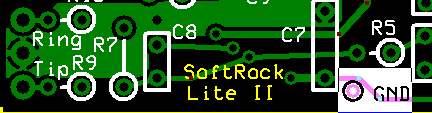

Install ground test loop
Using a short length of cut-off resistor or capacitor lead, fashion a short wire loop and solder it to the "ground" hole, such that the loop is available on the topside to provide a ground point for tests.
| Check | Designation | Component (top/bottom) | Orientation | Marking | Image | Band | Notes |
|---|---|---|---|---|---|---|---|
| ☐ | gnd | shunt wire (cut-off lead) (top) | any |
Go to Top of Page
Completed Photos
Note: the completed pictures are of the 40m option, which the author built. Other band options (which the author did not build) will appear slightly different (especially the inductors, whose windings and cores will vary by band) for the band-specific components.

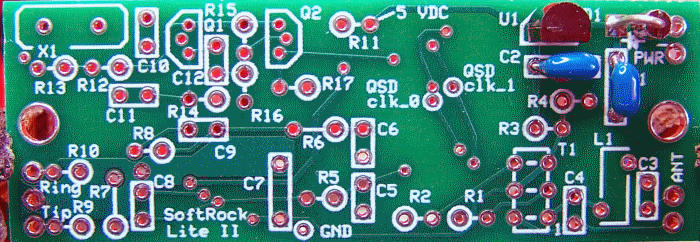

View of Completed Topside

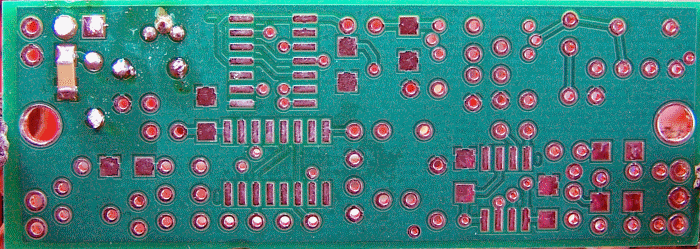

View of Completed Underside
Go to Top of Page
Testing
Overview
Visual Inspection
Using very good lighting and magnification, carefully inspect the solder joints to identify bridges, cold joints, or poor contacts.
Test Procedure
Test for current draw in 2 ways:
- Use a 12 volt power supply
- In one test there is also a 1k resistor in the series "chain" as well.
- in the second test, the setup is the same except that the current-limiting resistor is removed
Potential issues:
Test Table
| Seq | Test Point | Units | Nominal Value |
Author's Value | Your Value |
|---|---|---|---|---|---|
| 1 ☐ | With 1k Limiting resistor | mA | <9 | 4.1 | ___________ |
| 2 ☐ | Without limiting resistor | mA | 3-6 | 4.4 | ___________ |
Voltage Test
Test Setup
Once the current draw test is successfully passed:
- Apply 12 Vdc (NO current limiting resistor) to the PWR + and - pads (upper right-hand corner of the board)
- Measure the voltage with respect to ground at the testpoints below
| Seq | Test Point | Units | Nominal Value |
Author's Value | Your Value |
|---|---|---|---|---|---|
| 1 ☐ | R11 hairpin (5 Vdc point) | Vdc | 5 | 4.93 | ___________ |
| 2 ☐ | D1 cathode (square hole) | Vdc | 11-13 | 12.2 | ___________ |
Go to Top of Page
