Softrock Lite II Softrock Lite II: Local Oscillator
Band: 20m
Introduction
General Info About the Stage
Theory of Operation
The Local Oscillator stage implements a basic Colpitts Crystal Oscillator with a buffer stage to increase the signal level. The oscillator produces a signal that is at the crystal's specified fundamental frequency of 18.73 MHz.
This crystal frequency must be divided by 4 to produce a "third subharmonic" of what is referred to as the receiver's "Center Frequency", which must be provided to the mixers (see the discussion on subharmonics, below).In reality, for each frequency the crystal circuit will oscillate at a slightly lower frequency (~ - 1 kHz), due to the capacitive divider (C4/C5) pulling the crystal down somewhat. The effect is more pronounced for the higher bands.
The output of the Colpitts Oscillator is fed to U1, which has the effect of dividing the oscillator's fundamental frequency (18.73 MHz) by 4 AND (most importantly) shifting the phase of its 2 output signals (each 4.6825 MHz), such that they are in quadrature (90 degrees apart in phase)
Sub-harmonic Sampling
Alan, G4ZFQ points out that on the 30m and 20m and three of the IF option receivers, the Local Oscillator produces a signal that is 4/3 times the desired center frequency as opposed to the 4x the center frequency output for the lower band models.
"Subharmonic" works like this:
- The LO for this 20m RX outputs a 18.73 MHz signal that goes to the dividers /4, resulting in a 4.6825 MHz square wave ( rich in odd harmonics) being fed to the mixer.
- At the mixer, a strong 3rd harmonic is present on the clock inputs, along with the fundamental of 4.6825 MHz. The 4.6825 fundamental multiplied by 3 yields the third harmonic of 14.0475 MHZ.
- The Bandpass filter (BPF) performs the essential function of severely attenuating any signals centered around the 4.6825 MHz fundamental frequency and first harmonmic, but allows 20m signals centering around the third harmonic (14.0475) of the 4.6825 MHz LO output.
- The result is that the mixer is dealing with signals in the passband, centering on 14.0475 MHz, as though the dividers were passing a fundamental frequency of 14.0475 to the mixer. BPFs are all that stop Softrocks from working on unwanted frequencies!
- (Thanks to Mike Collins, KF4BQ, for the following:)
- A common analogy is a strobe light on a fan....you will see the same thing when strobing for one revolution, also for two revolutions, also for three, ... The mixer is sensitive to the fundamental and all harmonics of the mixer sampling freq, but the transformer (with 180deg phasing) and the hookup of the mixer cancels out even harmonics of the freqquency, leaving only the fundamental and odd harmonics. Just as you would see with a strobe light the signal will be reduced (over the same time period). The reduction for the 3rd harmonic is 1/3 the voltage on the holding cap. That give a overall 20log(1/3) = -9.54dB loss in the signal compare to receiving the fundamental. This is the drawback to sub-sampling; i.e. a reduction in sensitivity. It does allow the mixer to switch at a much lower rate which is why it is used.
- The front end filter rejects the fundamental and also the 5th and higher harmonic products so you are left with only the third. The harmonic rich LO is often misstated as why the receiver works with harmonics. If the LO was a sine wave it would still work fine (maybe more phase noise, but basically the same).
Go to Top of Page

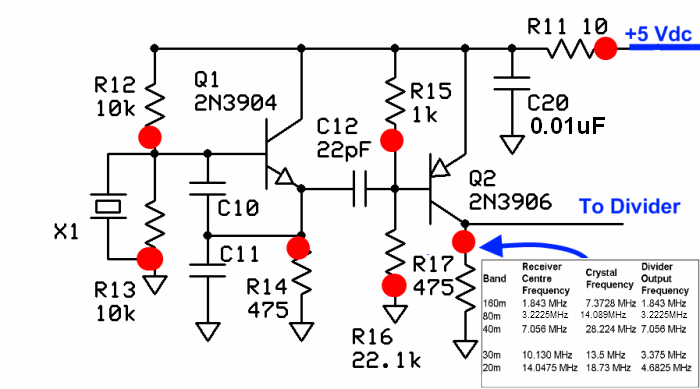

Stage Schematic
Go to Top of Page
Board Layouts

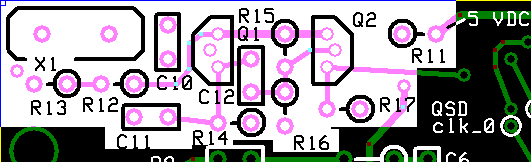

Board Top
Go to Top of Page

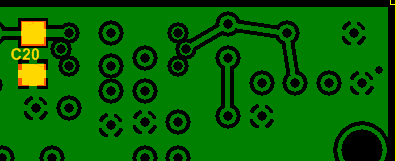

Board Bottom
Go to Top of Page
Local Oscillator Bill of Materials
( 20m band option)
(details for installation of each component are provided in the step instructions, further down the page)
| Check | Type | Category | Component | Count | Marking | Image |
|---|---|---|---|---|---|---|
| ☐ | Capacitor | Ceramic | 22 pF 5% | 1 | 22J |
|
| ☐ | Capacitor | Ceramic | 100 pF 5% | 1 | 101 |
|
| ☐ | Capacitor | Ceramic | 180 pF 5% | 1 | 181 |
|
| ☐ | Capacitor | SMT 1206 | 0.01 uF | 1 | (smt) no stripe |
|
| ☐ | Resistor | 1/4W | 10 ohm 1/4W 1% | 1 | br-blk-blk-gld-br |
|
| ☐ | Resistor | 1/4W | 475 1/4W 1% | 2 | y-v-grn-bl-br |
|
| ☐ | Resistor | 1/4W | 1 k 1/4W 1% | 1 | br-blk-blk-br-br |
|
| ☐ | Resistor | 1/4W | 10 k 1/4W 1% | 2 | br-blk-blk-r-br |
|
| ☐ | Resistor | 1/4W | 22.1 k 1/4W 1% | 1 | r-r-brn-r-br |
|
| ☐ | Transistor | TO-92 | 2N3904 NPN Transistor | 1 | 2N3904 |
|
| ☐ | Transistor | TO-92 | 2N3906 PNP transistor | 1 | 2N3906 |
|
| ☐ | Xtal | Xtal | 18.73 MHz | 1 | 18.730 1108 |
|
Go to Top of Page
Detailed Build Steps
Install SMT cap
See hints on installing SMT Caps.| Check | Designation | Component (top/bottom) | Orientation | Marking | Image | Band | Notes |
|---|---|---|---|---|---|---|---|
| ☐ | C20 | 0.01 uF ((bottom)) | yellow pads | (smt) no stripe |
|
any |
Install Crystal
See Band-specific Components chart for value.
Mount the HC49 crystal mounting in the upper left corner of the board, mounting it vertically to the board. A small plated-through hole in the lower left corner of the crystal mounting position provides a place for a grounding wire to be soldered to the metal crystal case. The grounding wire also provides additional mechanical support for the crystal.
Make sure the crystal is mounted slightly above the board. You can use a piece of cardboard or wire insulation between the bottom of the crystal and the board to get the desired standoff distance while mounting X1.
| Check | Designation | Component (top/bottom) | Orientation | Marking | Image | Band | Notes |
|---|---|---|---|---|---|---|---|
| ☐ | X1 | 18.73 MHz (top) | 18.730 1108 |
|
20m |

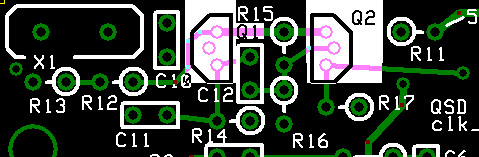

Install transistors
Mount the two transistors being careful to orient them according to the pattern in the silkscreen.
Take care not to get 2N3904 and 2N3906 mixed up. Carefully check the last digit.
| Check | Designation | Component (top/bottom) | Orientation | Marking | Image | Band | Notes |
|---|---|---|---|---|---|---|---|
| ☐ | Q1 | 2N3904 NPN Transistor (top) | 2N3904 |
|
any | ||
| ☐ | Q2 | 2N3906 PNP transistor (top) | 2N3906 |
|
any |

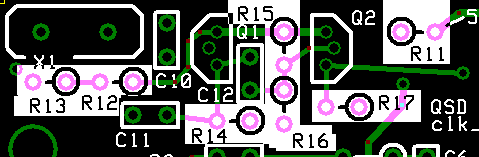

Install Resistors
See hints on installing and orienting resistors
| Check | Designation | Component (top/bottom) | Orientation | Marking | Image | Band | Notes |
|---|---|---|---|---|---|---|---|
| ☐ | R11 | 10 ohm 1/4W 1% (top) | W-E | br-blk-blk-gld-br |
|
any | |
| ☐ | R12 | 10 k 1/4W 1% (top) | E-W | br-blk-blk-r-br |
|
any | |
| ☐ | R13 | 10 k 1/4W 1% (top) | E-W | br-blk-blk-r-br |
|
any | |
| ☐ | R14 | 475 1/4W 1% (top) | E-W | y-v-grn-bl-br |
|
any | |
| ☐ | R15 | 1 k 1/4W 1% (top) | N-S | br-blk-blk-br-br |
|
any | |
| ☐ | R16 | 22.1 k 1/4W 1% (top) | N-S | r-r-brn-r-br |
|
any | |
| ☐ | R17 | 475 1/4W 1% (top) | E-W | y-v-grn-bl-br |
|
any |

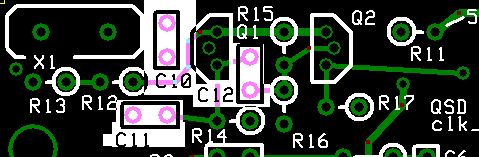

Install Ceramic Capacitors
See Band-specific Capacitors chart for value.
See hints on identifying and installing Ceramic Capacitors.
| Check | Designation | Component (top/bottom) | Orientation | Marking | Image | Band | Notes |
|---|---|---|---|---|---|---|---|
| ☐ | C12 | 22 pF 5% (top) | 22J |
|
20m | ||
| ☐ | C10 | 180 pF 5% (top) | 181 |
|
20m | ||
| ☐ | C11 | 100 pF 5% (top) | 101 |
|
20m |
Go to Top of Page
Completed Photos
Note: the completed pictures are of the 40m option, which the author built. Other band options (which the author did not build) will appear slightly different (especially the inductors, whose windings and cores will vary by band) for the band-specific components.

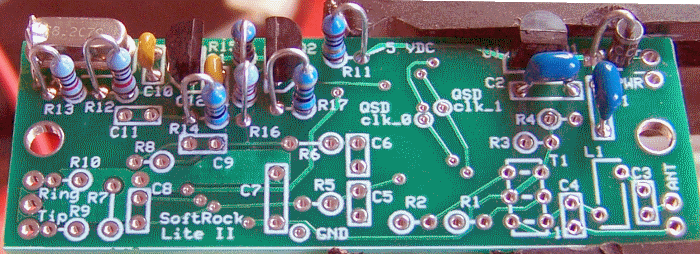

View of Completed Topside

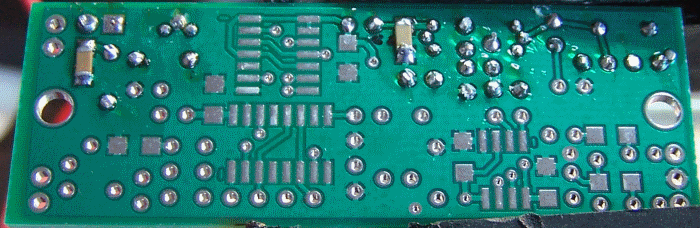

View of Completed Underside
Go to Top of Page
Testing
Overview
Visual Check
Test Setup
Using very good lighting and magnification, carefully inspect the solder joints to identify bridges, cold joints, or poor contacts.Current Draw
Test Setup
- connect a 1k ohm resistor in series with the positive power lead
- apply 12 Vdc and measure the current draw with the limiting resistor in place
- remove the current limiting resistor
- apply 12 Vdc and measure the current draw without the limiting resistor
Test Measurements
| Testpoint | Units | Nominal Value | Author's | Yours |
|---|---|---|---|---|
| With the 1k limiting resistor | mA | < 9 | 7.3 | _______ |
| Without current limiting resistor | mA | < 20 | 14.1 | _______ |
Voltage Tests
Test Setup
- Power the board
- Measure the testpoint voltages with respect to ground
Note that some of the voltages measured may have ac components, which, depending upon your DMM, may average in with the dc voltages to produce higher apparent dc voltages than theory would suggest.
Author measured the dc voltage at R17 using a scope and got ~2.6 Vdc. Per Alan, G4ZFQ, This voltage (at R17) is not critical and can vary a lot, partly depending on the crystal. The important thing is that the LO's RF output is a good healthy signal and is detectable on an external RX (or counter or scope).
Test Measurements
| Testpoint | Units | Nominal Value | Author's | Yours |
|---|---|---|---|---|
| R11 hairpin | Vdc | 4.5 - 5 | 4.9 | _______ |
| R15 hairpin | Vdc | < R11 hairpin | 4.7 | _______ |
| R12 hairpin | Vdc | < 2.5 | 2.3 | _______ |
| R17 hairpin | Vdc | > 2.0 | 4.2 | _______ |
LO Output Test
Test Setup
- You can use a ham receiver tuned to the appropriate crystal frequency. You should hear the LO's frequency.
- Scope measurements may be taken IF you have a high quality, calibrated scope with correctly compensated probes
- Note: 1/3 sub-harmonic sampling does reverse the spectrum. Changing the audio cable connections to the SoftRock Lite circuit board from tip to ring and ring to tip will correct the reversed spectrum so that the SDR software works the same for the higher band receivers as with the lower band receivers. (See Cecil K5NWA'a explanation of the sub-harmonic sampling in his message on the Yahoo Softrock group.
Test Measurements
| Seq | Test Point | Units | Nominal Value |
Author's Value | Your Value |
|---|---|---|---|---|---|

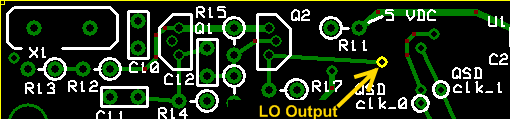

| 1 ☐ | "Lo Output" testpoint | MHz | 18.73 | 18.73 | ___________ |
